| USSR – BOMBS AND FUZES |
| BOMBS |
| ARMOR PIERCING |
| BETAB-150 DS |
| TYPE |
Concrete-piercing (rocket assist) |
| NOSE FUZE |
None |
| TAIL FUZE |
A base fuze detonates the explosiv filling. A time fuze is used to ignite the rocket propellant. The TM 24 is listed in the BETAB-170 DS and BETAB-250 DS. |
| TOTAL LENGTH (in.) |
82.4 |
| BODY LENGTH (in.) |
35.4 |
| MAXIMUM DIAMETER (in.) |
8 |
| WALL THICKNESS (in.) |
–– |
| TOTAL WEIGHT |
363 lbs. |
| CHARGE/WEIGHT RATIO |
9.3% |
| MAIN CHARGE (TYPE & WEIGHT) |
TNT – 33.8 lbs. |
| SUSPENSION |
Two suspension bands. |
| COLOR MARKINGS |
Nose band – Blue |
| BODY CONSTRUCTION |
The bomb consists of an 8 in. A.P. artillery projectile with the base closed by a plug, which contains an adap-ter for the base fuze. The wall of the projectile extends beyond the base plug, and is threaded internally to re-ceive the rocket motor. |
| TAIL CONSTRUCTION |
The tail unit consists of four (4) pressed steel fins wel-ded to a conical section. The tail assembly is fitted over the venturi of the rocket motor. |
|
REMARKS – The propellant charge of the rocket motor consists of 38.6 lbs. of nitrocellu-lose powder having a burning time of 2.4 seconds. This rocket effect adds about 690 fps. to the velocity of the bomb, and allows a penetration of some 62.5 inches of concrete. A BETAB-170 DS and a BETAB-250 DS have been reported. |
|

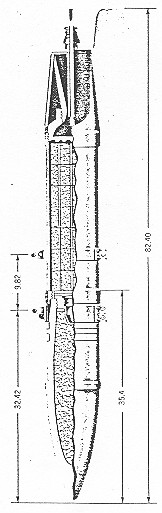

Figure 15 |
|
|
 |
