ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
Chapter 8 |
FRENCH BOMBS |
10-kg (Model 1927) Incendiary |
Data |
Over-all length |
22.1 in. |
Body length |
Unknown |
Body diameter |
3.54 in. |
Wall thickness |
Unknown |
Tail length |
10.2 in. |
Tail width |
5.5 in. |
Type of filling |
Magnesium |
Incendiary | |
Total weight |
8 kg |
Fuzing | |
Nose only |
24/31 Type H Model 1929 or |
24/31 R.S.A. Model 1929 |
Description |
The bomb consists of three parts: (1) a cast-steel nose filling sleeve and fuze adapter which screws into (2) a cast magnesium alloy body at the rear of which is screwed another (3) magnesium alloy casting in the form of a truncated cone with a base plate as an integral part of the castings. The booster tube is threaded into the nose sleeve. Pla-tes divide the bomb into three sections; nose; central body, and tail portion. The incen-diary filling is contained in twelve triangular tubes made of magnesium and filled with in-cendiary composition. The tail unit also contains incendiary. All the incendiary compositi-on is connected with wicks for ignition. |
Color and Markings |
Body - red or blue |
Tail - green or black |

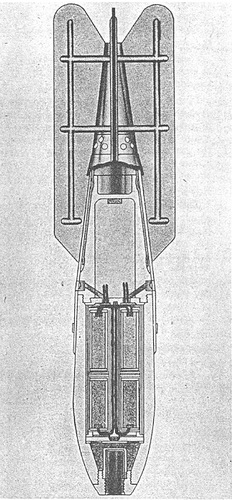

Figure 258 |
|
