| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/21-mm H.E. (Cast Steel) |
| Data |
|
Gun used in |
120/21-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
377 mm |
|
Without fuze |
362 mm |
|
Diameter at base |
119 mm |
|
Distance base to band |
22 mm |
|
Width of band |
15 mm |
|
Diameter at bourrelet |
119.5 mm |
|
Type of filling |
MST |
|
Weight of filling |
1.290 kg |
|
Weight of loaded projectile |
17.800 kg |
| Remarks |
| This projectile is cast steel. |
|

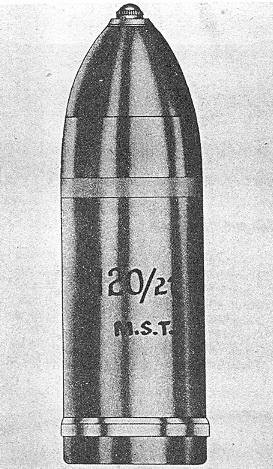

Figure 143 |
|
|
 |
