| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/21-mm H.E. |
| Data |
|
Gun used in |
120/21-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
355 mm |
|
Without fuze |
340 mm |
|
Diameter at base |
123.4 mm |
|
Distance base to band |
20 mm |
|
Width of band |
17.1 mm |
|
Diameter at bourrelet |
119.3 mm |
|
Type of filling |
MST |
|
Weight of filling |
2.100 kg |
|
Weight of loaded projectile |
16.400 kg |
|

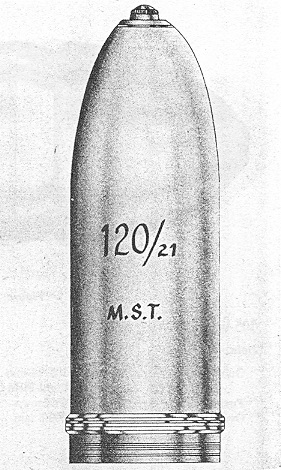

Figure 142 |
|
|
 |
