| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 100/17-mm A.D.E.-H.E. M36 |
| Data |
|
Gun used in |
100/17-mm Light Field Gun |
|
Fuzing |
|
|
M32 |
Nose Fuze A.D.E. M32 |
|
M36 |
Nose Fuze A.D.E. M36 |
|
Over-all length |
|
|
Without fuze |
379.7 mm |
|
With fuze |
M32 - 474.7 mm |
|
|
M36 - 479.9 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
55 mm |
|
Width of band |
16 mm |
|
Diameter at bourrelet |
99.70 mm |
|
Type of filling |
TNT |
|
Weight of filling |
1.570 kg |
|
Weight of loaded projectile |
13.375 kg |
|
Booster used |
No. 3 M38 |
|

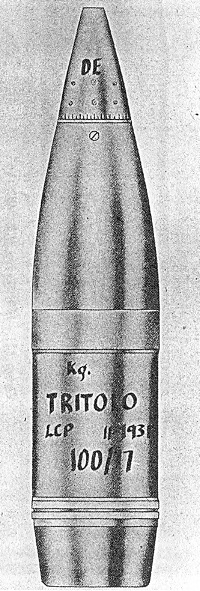

Figure 133 |
|
|
 |
