| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 100-mm A.D.E.-H.E. |
| Data |
|
Gun used in |
100/17-mm Light Field Gun |
|
Fuzing |
Nose Fuze A.D.E. M12 |
|
Over-all length |
|
|
With fuze |
399 mm |
|
Without fuze |
341 mm |
|
Diameter at base |
99 mm |
|
Distance base to band |
40 mm |
|
Width of band |
13 mm |
|
Diameter of bourrelet |
99.70 mm |
|
Type of filling |
TNT, MBT, MAT, or Pertite |
|
Weight of filling |
1.312 kg |
|
Weight of loaded projectile |
12.93 kg |
|
Booster used |
No. 3 M38 |
| Remarks |
| This projectile is fuzed for aerial burst or impact. |
|

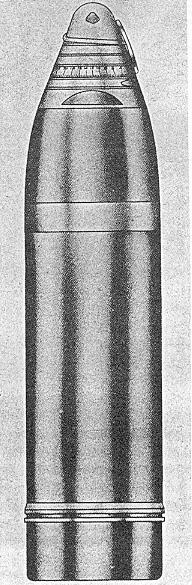

Figure 132 |
|
|
 |
