| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/13-mm H.E. (Light Case) |
| Data |
|
Gun used in |
75/13-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze M (Guerritore) or M10 |
|
Over-all length |
|
| Without fuze | 276.7 mm |
|
Diameter at base |
74.2 mm |
|
Distance base to band |
38 mm |
|
Width of band |
12 mm |
|
Diameter at bourrelet |
74.6 mm |
|
Type of filling |
MNDT or TNT |
|
Weight of filling |
0.53 kg |
|
Weight of loaded projectile |
5.1 kg |
|
Booster used |
No. 1 M38 |
|

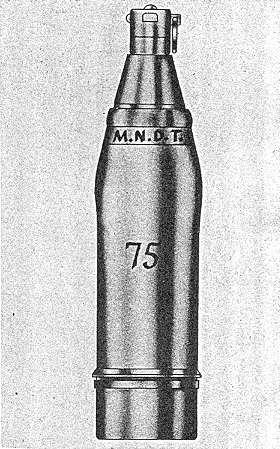

Figure 106 |
|
|
 |
