| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/13-mm H.E. |
| Data |
|
Gun used in |
75/13-mm Mountain Gun |
|
Fuzing |
Nose Percussion M10,
I.M35 p.c., I.M38
p.c., or I.M40 p.c. |
|
Over-all length |
266 mm |
|
Diameter at base |
74.2 mm |
|
Distance base to band |
Unknown |
|
Weidth of band |
Unknown |
|
Diameter at bourrelet |
74.6 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.37 kg |
|
Weight of loaded projectile |
6.37 kg |
|

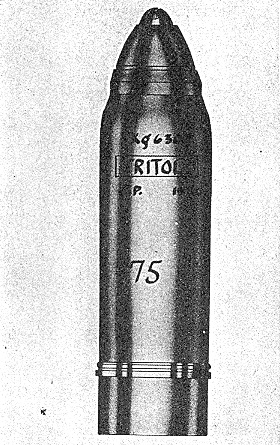

Figure 105 |
|
|
 |
