| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 65/17-mm A.P. |
| Data |
|
Gun used in |
65/17-mm Mountain Gun |
|
Fuzing |
Base Percussion Fuze M09 |
|
Over-all length |
280 mm |
|
Diameter at base |
64.50 mm |
|
Distance base to band |
23 mm |
|
Width of band |
7 mm |
|
Diameter at bourrelet |
64.7 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.160 kg |
|
Weight of loaded projectile |
4.23 kg |
| Remarks |
| The projectile is part of a fixed round. The propellant charge weighs 5.130 kg. |
|

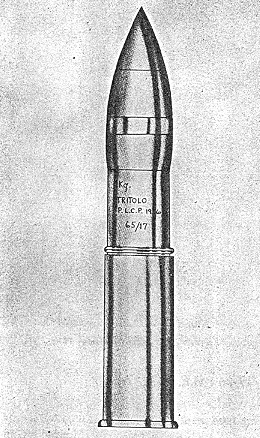

Figure 101 |
|
|
 |
