| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 65/17-mm H.E. |
| Data |
|
Gun used in |
65/17-mm Mountain Gun |
|
Fuzing |
Nose Percussion Fuze M10 |
|
Over-all length |
|
|
With fuze |
244 mm |
|
Without fuze |
234 mm |
|
Diameter at base |
64.5 mm |
|
Distance base to band |
23 mm |
|
Widht of band |
7 mm |
|
Diameter at bourrelet |
64.7 mm |
|
Type of filling |
TNT or MNDT |
|
Weight of filling |
0.23 kg |
|
Weight of loaded projectile |
4.15 kg |
|
Total length of round |
394 mm |
|
Weight of complete round |
5.00 kg |
|
Booster used |
No. 5 M38 |
| Remarks |
|
The projectile is thought also to have been fuzed with the Nose Fuze A.D.E. M06/17. This fuze requires the removal of nose adapter and also changes the length and weight of the projectile. |
|

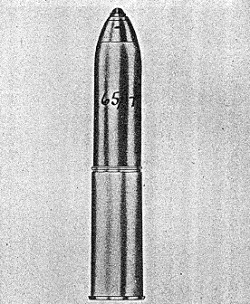

Figure 100 |
|
|
 |
