| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 37/45-mm A.P. |
| Data |
|
Gun used in |
37/45-mm Anti-tank Gun |
|
Fuzing |
None |
|
Over-all length |
Unknown |
|
Diameter at base |
Unknown |
|
Distance base to band |
Unknown |
|
Width of band |
Unknown |
|
Diameter at bourrelet |
Unknown |
|
Weight of loaded projectile |
0.7 kg |
|
Total length of round |
337 mm |
|
Weight of complete round |
1.43 kg |
|
Length of cartridge case |
202 mm |
|
Weight of propellant |
0.188 kg |
| Remarks |
| The projectile contains no explosive, but has a tracer. |
|

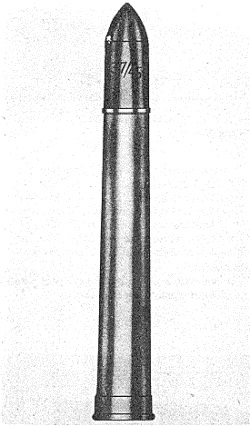

Figure 89 |
|
|
 |
