| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 37/40-mm H.E./A.P. |
| Data |
|
Gun used in |
37/40-mm Gun |
|
Fuzing |
None |
|
Over-all length |
138 mm |
|
Diameter at base |
30 mm |
|
Distance base to band |
18 mm |
|
Width of band |
20 mm |
|
Diameter at bourrelet |
36.4 mm |
|
Type of filling |
Ballistite |
|
Weight of filling |
23 grams |
|
Weight of loaded projectile |
698 grams |
|
Total length of round |
322 mm |
|
Weight of complete round |
2 lbs. 14.5 oz. |
|
Weight of propellant |
112 grams |
| Remarks |
|
The base of the projectile is closed by a screwed plug, and there is no fuze. It is possible that the filling is intended to ignite by heating effects resulting from shock of impact. |
|

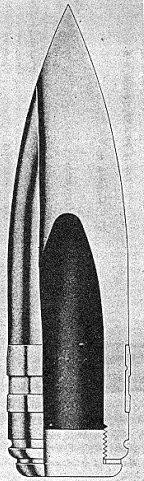

Figure 88 |
|
|
 |
