| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 15-kg Gas Bomb |
| Data |
|
Over-all length |
31.0 in. |
|
Body length |
20.7 in. |
|
Body diameter |
4.7 in. |
|
Tail length |
13.8 in. |
|
Tail width |
6.3 in. |
|
Type of filling |
Diphenyl Chlorarsine |
|
Weight of filling |
3.65 kg |
|
Burster used |
TNT |
|
Weight of burster |
1.7 kg |
|
Total weight |
16 kg |
| Fuzing |
|
Tail fuze - Unknown |
| Description |
|
The bomb is thick-walled, with a steel body and nose cast in one piece, to which a dome-shaped base is attached. Sheet-metal tail fins are attached to a metal band clam-ped around the body. |
| Color and Markings |
| Over-all - yellow; Geneva cross stenciled on the body |
| Remarks |
| This bomb is thought to be the same as the 15 kg S.A.P. execpt for filling. |
|

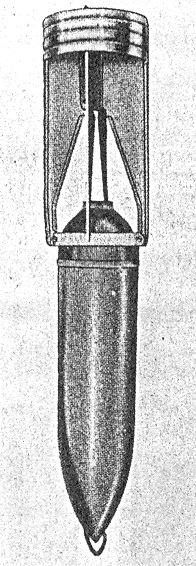

Figure 25 |
|
|
 |
