| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 15-kg S.A.P. Bomb |
| Data |
|
Over-all length |
31.0 in. |
|
Body length |
20.7 in. |
|
Body diameter |
4.7 in. |
|
Tail length |
13.8 in. |
|
Tail width |
6.3 in. |
|
Type of filling |
TNT |
|
Weight of filling |
5.2 kg |
|
Total weight |
15.5 kg |
| Fuzing |
|
Tail - Type N |
| Description |
|
The bomb is thick-walled with a steel body and nose cast in one piece, to which a dome-shaped base is attached. Sheet metal tail fins are attached to a metal band, clamped around the body. |
| Color and Markings |
| Over-all - grey; nose - red |
|

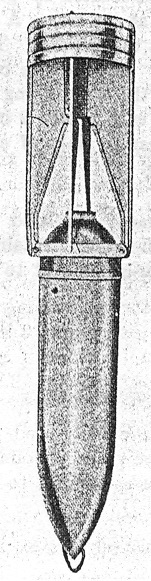

Figure 14 |
|
|
 |
