104-kg S.A.P.
|
| Data |
|
Over-all length |
43.0 in. |
|
Body length |
28.0 in. |
|
Body diameter |
10.0 in. |
|
Tail length |
15 in. (approx.) |
|
Tail width |
11. in. |
|
Type of filling |
TNT |
|
Weight of filling |
30 kg (approx.) |
|
Total weight |
104.0 kg |
| Fuzing |
|
Tail only - Type C |
| Description |
|
The steel body and nose are cast in one piece. A dome-shaped base plate receives the sheet-metal tail fins, which are attached to a metal band which clamps around the body. |
| Color and Markings |
| Over-all - grey; nose - red |
|

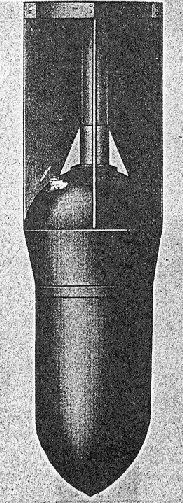

Figure 17 |
|
|
 |
