| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 100-kg S.A.P. Bomb |
| Data |
|
Over-all length |
50.5 in. |
|
Body length |
31.0 in. |
|
Body diameter |
9.9 in. |
|
Wall thickness |
0.5 in. |
|
Tail length |
21.3 in. |
|
Tail width |
9.9 in. |
|
Type of filling |
Amatol |
|
Weight of filling |
27.3 kg |
|
Total weight |
109.0 kg |
| Fuzing |
| Description |
|
The bomb has a single-piece casing with a base plate attached by two rows of screws. A sheet metal is attached to base plate by screws. |
| Color and Markings |
| Over-all - grey or dull blue; nose - red band |
|

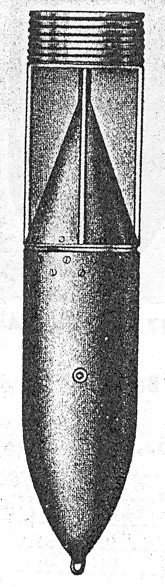

Figure 16 |
|
|
 |
