Chapter 5 - Section 1
NAVY PROJECTILES
12-cm (120-mm) (4.7-Inch) High-Explosive (Ordinary Mod 2)
Assembled round:
Weight of complete round: 72.53 pounds.
Length of complete round (with type 91 fuze): 41.75 inches (approximately).
Projectile:
Weight of filled projectile (without fuze): 41.84 pounds.
Weight of empty projectile: 38.41 pounds.

Weight stamped on rotating band (sample): 17.46 kg. (varies with individual projectiles).

Dimensions:
Length of projectile (without fuze): 13.95 inches.
Diameter at bourrelet: 4.6 inches (119 mm).
Distance from base to rotating band: 1.56 inches.
Width of rotating band: 1.9 inches.
Radius of ogive: 4 cal.
Filling: Cast picric acid (shimose): 3.43 pounds.

The charge consists of a single block of explosive cast and sealed in a waxed-paper con-tainer, encased in a heavy cotton-flannel bag and sealed in the projectile with paraffin.

Fuzing:
Type 91 mechanical time fuze.
Type 88 point detonationg fuzes.
Weapon in which used: Type 10th year 12-cm/45 dual-purpose gun.

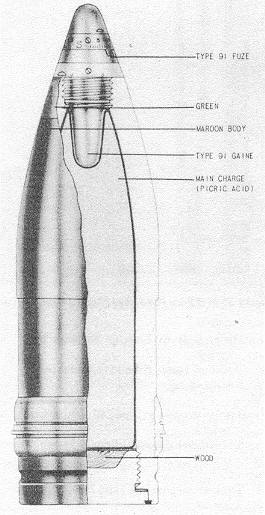

Figure 393 – 12-cm (Ordinary Mod 2) High-Explosive.
