Chapter 5 - Section 1
NAVY PROJECTILES
12-cm (120-mm) (4.7-Inch) High-Explosive (Ordinary Mod 1)
Assembled round:
Weight of complete round: 74.03 pounds.
Length of complete round (with type 91 fuze): 41.75 inches (approximately).
Projectile:
Weight of filled projectile (without fuze): 43.34 pounds.
Weight of empty projectile: 39.38 pounds.

Weight stamped on rotating band (sample): 17.9 kg (varies with individual projectiles).

Dimensions:
Length of projectile (without fuze): 13.95 inches.
Diameter at bourrelet: 4.6 inches (119.0 mm).
Distance from base to rotating band: 1.56 inches.
Width of rotating band: 1.9 inches.
Radius of ogive: 4 cal.
Filling:
Trinitroanisole (type 91 explosive): 3.96 pounds.
The explosive is cast directly in the projectile body.
Fuzing:
Type 91 mechanical time fuze.
Type 88 point detonating fuzes.
Weapon in which used:
Type 10-year 12-cm/45 dual-purpose gun.

Remarks: The base of the projectile is slightly recessed to receive a steel plate which is locked in by a steel ring. This arrangement is presumed to be a seal to prevent the pro-pellant gases entering possible flaws in the solid base of the projectile. A similar feature is common in U.S.Army projectiles.

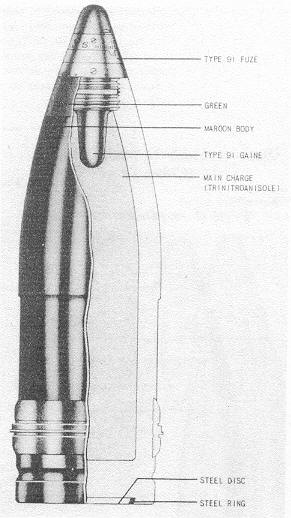

Figure 392 – 12-cm (Ordinary Mod 1) High-Explosive.
