Fuzing: Model 1 or Model
4. |
Weight of projectile (approximately) filled (without fuze): 4.16 ounces. |
Length of projectile (without fuze): 3.43 inches. |
Length of assembled round: 8.24 inches. |
Weight of projectile filled (including tracer): 0.72 ounce. |
Filling: H.E.T. |
Standard: Three pellets of TNT and aluminum |
Alternates: 1. Three pellets of TNT. 2. Cast or pressed tetryl. |
Color and markings: Orange or red over all. |
Remarks: The only discernible difference between the orange and
red rounds is a slight disagreement in weight.
|

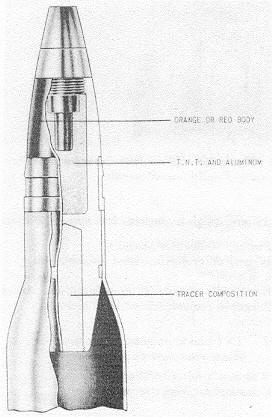

Figure 360 – 25-mm High-Explosive Tracer
Projectile. |
