Chapter 5 - Section 1
NAVY PROJECTILES
25-mm High-Explosive Incendiary Projectile
Fuzing: Model 1 or Model 4.
Weight of projectile, filled (without fuze): 7.17 ounces.
Length of projectile (without fuze): 3.58 inches.
Length of complete round: 8.27 inches.
Filling:

TNT and aluminum: 0.20 ounces.

White phosphorus: 0.47 ounces.

Weight of projectile filling: 0.67 ounces.
Color and markings: Green over all.

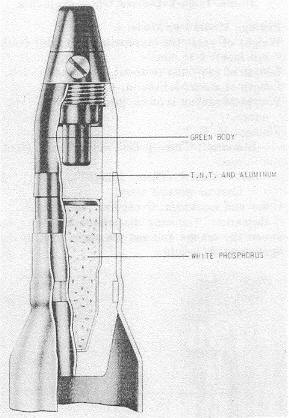

Figure 359 – 25-mm High-Explosive Incendiary Projectile.
