20-mm High-Explosive Tracer Projectile
Fuzing:

Basic projectile: Model 1.

Modification I: Model 1.

Modification II: Model 1.

Modification III: Model 2.

Modification IV: Model 3.

Modification V: Two-piece fuze. (Japanese designation unknown).

Weight of projectile (fuzed): 4.51 ounces.
Length of projectile (fuzed): 3.10 inches.
Length of complete round: Mk I, 5.70 inches*, Mk II, 6.88 inches.
Filling: Pentolite (50 percent TNT, 50 percent PETN).
Weight of filling: 0.18 ounce.
Color and markings: Red over all (modifications indicated by white bands).

Remarks: The body of all these projectiles (basic and five modifiactions) contains two cavities separated by a steel septum. The upper cavity contains the H.E. filling, while the lower contains the tracer. The same H.E. filling and tracer mixture are used in all in-stances. Differences between the basic projectile and subsequent modifications are principally in the fuzes and weight of H.E. and tracer filling used.

* The No. Model and Model 1 projectiles are 0.16 inch shorter than the other rounds.

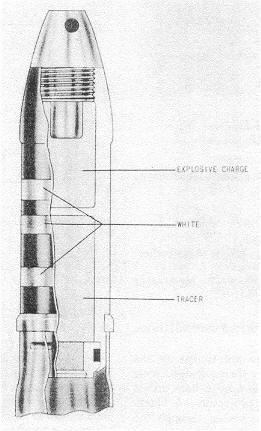

Figure 352 – 20-mm High-Explosive Tracer Projectile.
