Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition
Chapter 5 - Section 1
NAVY PROJECTILES
20-mm High-Explosive Incendiary Projectile
Fuzing:

Basic projectile: Model 1.

Modification I: Model 1.

Modification II: Model 3.

Modification III: Model 2.

Modification IV: Model 3.

Weight of projectile (fuzed): 4.51 ounces.
Length of projectile (fuzed): 3.23 inches.
Length of complete round: Mk I, 5.66 inches; Mk II, 6.84 inches.
Filling:

TNT: 0.18 ounces.

WP: 0.11 ounces.

Incendiary mixture: 0.04 ounces.

Color and markings: Greenish-yellow over all, with one or more white bands to indicate modifications.

Remarks: The body of all projectiles (basic and modifications) is of steel, with one cavi-ty. The base of the  cavity contains TNT, above which is an aluminum cannister white phosphorus. The cannister is surrounded by a graphited, flake nitrocellulose incendiary mixture. The Model 4 projectile eliminates the TNT and has a longer white phosphorus cannister.

Difference between the basic projectiles and subsequent modification are principally in the fuzes and slight changes in the shape of the cavity.

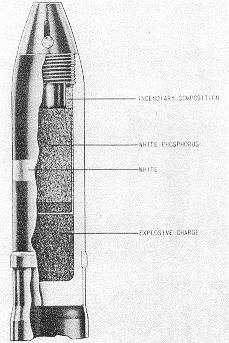

Figure 351 – 20-mm High-Explosive Incendiary Projectile.
