| Chapter 4 – Section 3 |
| ARMY MORTARS |
| Type 94 - 90-mm High-Explosive Mortar |
| Weight complete round: 11.8 pounds. |
| Weight main charge: 2.35 pounds. |
| Explosive components: |
|
Main charge: TNT. |
|
Booster: Picric (presumed). |
| Over-all length (without fuze): 15.83 inches. |
| Length fins assembly: 4.02 inches. |
| Maximum diameter at bourrelet: 3.54 inches (90 mm). |
| Maximum diameter tail fins: 3.54 inches. |
| Color: Black over all with a red tip and yellow band before the bourrelet. |
| Fuzing: Type 90 instantaneous short-delay mortar fuze. |
| Weapons in which used: |
|
Type 94: 90-mm mortar. |
|
Type 97: 90-mm mortar. |
|
Description: This shell is similar in construction to the type 87 81-mm mortar shell. |
|

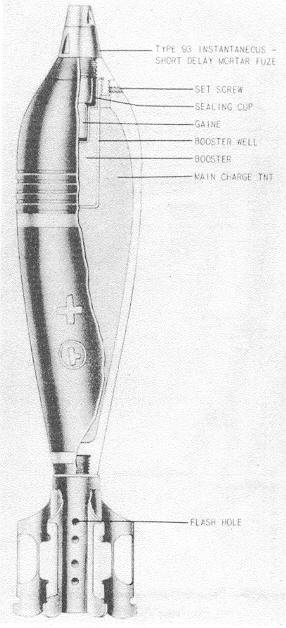

Figure 308 – Type 94 90-mm High-Explosive Mortar. |
|
|
 |
