| ARMY MORTARS |
| Type 89 - 50-mm Incendiary Mortar |
| Weight complete round: 1.25 pounds. |
| Weight incendiary mixture: 10.7 ounces. |
| Filling: Incendiary mixture: |
|
Potassium nitrate: 47.7 percent. |
|
Aluminum: 21.7 percent. |
|
Sulphur: 19.9 percent. |
|
Antimony trisulphide: 6.1 percent. |
|
Wax: 2.8 percent. |
|
Propellant: Nitrocellulose powder. |
| Over all length: 6.25 inches. |
| Length propellant containers: 1.25 inches. |
| Diameter propellant container: 1.02 inches. |
| Maximum diameter: 1.97 inches (50 mm). |
| Color: Natural brass body with black propellant container. |
| Fuzing: Powder delay train. |
| Weapon in which used: Type 89 grenade discharger. |
|
Description: The shell is a cylindrical sheet-metal tube with a hemispherical nose and is covered with clear lacquer. Around the side of the casing are four silver-foil disks, each disc covering seven ports in the shell casing. The casing is crimped over the base, which contains two black-powder delay trains and is threaded to receive the propellant hous-ing. The propellant housing housing is of steel, with six gas-escape ports in the sides and a percussion cap set in the screwed-in base. The propellant is contained in a copper cup inside the propellant housing. |
|
Operation: The flash from the propellant ignites the delay trains in the base of the shell, which in turn ignites the incendiary filling. |
|
Remarks: Another incendiary shell, the type 10-year, is similar in appearance and opera-tion to the type 89 shell. It is 5 7/8 inches in length; the color of the body is natural brass; and the propellant assembly is black. There are eight sets of perforations covered with silver-foil disks. The type 10-year shell is fired from the type 10-year grenade dis-charger, an obsolete weapon that as the forerunner of the type 89 grenade discharger. |
|

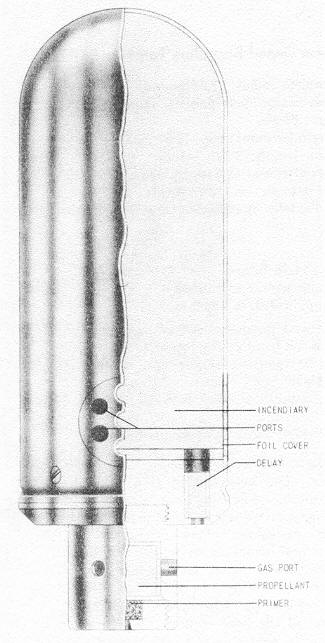

Figure 298 – Type 89 50-mm Incendiary Mortar. |
|
|
 |
