| ARMY MORTARS |
| Type 95 - 50-mm Smoke Mortar |
| Weight complete round: 1.9 pounds. |
| Weight smoke filling: 3.7 ounces. |
| Filler: |
|
Smoke compound: Hexachlorethane smoke mixture. |
|
Propellant: Nitrocellulose diphenylamine flaked powder. |
| Over all length (without fuze): 4.33 inches. |
| Maximum diameter: 1.97 inches (50 mm). |
|
Color: Black over all with a red band at the nose and two white bands, one immediately below the bourrelet and the other before the rotating band. |
| Fuzing: Type 89 small time fuze. |
| Weapons in which used: Type 89 grenade discharger. |
|
Description: The projectile casing is of forged steel. The nose screws onto the main body at a point just behind the bourrelet. The main body is joined to the base with a press-fit held by four screw shear pins. The propellant base housing which screws onto the shell base is similar in construction and operation to that of the H.E. shell. The smoke mixture is held in a brass can inside the main body and has attached to it by a short cord a steel retarder cup to slow its descent. |
|
Operation: When the fuze gaine fires, it ruptures the thin plate in the base of the gaine, ignited the smoke mixture, and expels the smoke candle from the shell casing. |
|

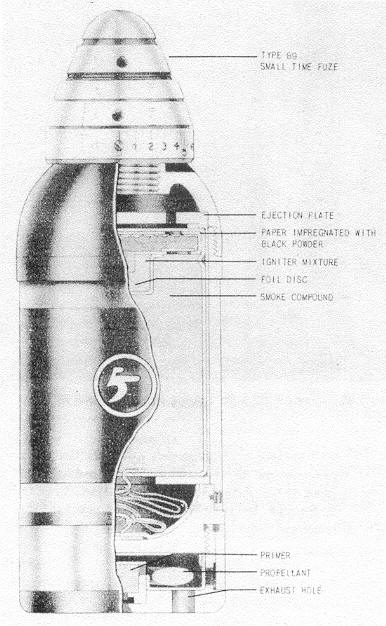

Figure 297 – Type 95 50-mm Smoke Mortar. |
|
|
 |
