| Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition |
| Chapter 4 – Section 1 |
| ARMY PROJECTILES |
| 30-cm (305-mm) Armor-Piercing High-Explosive Projectile |
| Weight of projecitle (approximately): 680 pounds. |
| Weight of filling: No data. |
| Filling: No data. |
| Diameter at bourrelet: 305 mm (12 inches). |
| Length over all: 1,240 mm (48 13/16 inches). |
| Length of protruding from case: 1,198 mm (47 11/66 inches). |
| Width of rotating band: 53 mm (2 1/16 inches). |
| Fuzing: Type 95 large Mk 2 Model 2 base fuze. |
| Weapons in which used: Type 7-year 30-cm howitzer. |
|

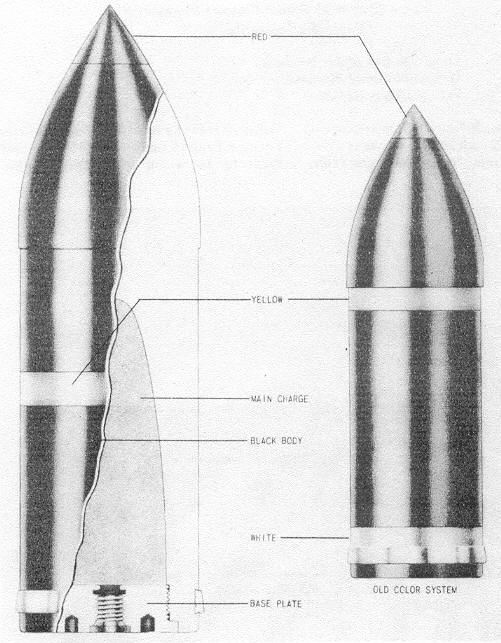

Figure 294 – 30-cm Armor-Piercing High-Explosive Projectile. |
|
|
 |
