9-cm (90-mm) High-Explosive Projectile10-cm (105-mm) Ammunition
Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition
Chapter 4 – Section 1
ARMY PROJECTILES
9-cm (90-mm) High-Explosive Semisteel Projectile
Weight of projectile, filled: 7.86 kg. (17.3 pounds).
Weight of filling: 0.65 kg. (1.42 pounds).
Filling: TNT.
Diameter at bourrelet: 90 mm (3 17/32 inches).
Length over-all (without fuze): 263.5 mm (10 3/8 inches).
Length of protruding from case (without fuze): 246.1 mm (9 11/16 inches).
Width of rotating band: 15.9 mm (5/8 inch).
Fuzing:

Type 88 instantaneous nose fuze (howitzer-mortar type).

Type 88 short-delay nose fuze (howitzer-mortar type).

Weapons in which used: This is an antiquated weapon classified as a mortar by the Ja-panese by virtue of length of thube, muzzle velocity, etc., but bearing only a remote re-semblance to other Japanese mortars. It is breech-loading, using an interrupted thread breechblock, and employing projectiles embodying the conventional features of design of common breech-loading artillery pieces.

Remarks: The projectiles is painted black over-all, with a 1/2 inch green or yellow band before the rotating band. The fuze adapter is painted red.

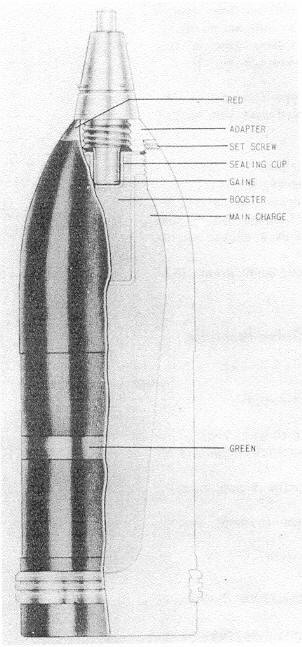

Figure 271 – 9-cm High-Explosive Semisteel Projectile.
