ARMY PROJECTILES
9-cm (90-mm) High-Explosive Projectile
Weight of projectile, filled: 7.79 kg (17.13 pounds).
Weight of filling: 0.59 kg. (1.3 pounds).
Filling: Crude TNT.
Diameter at bourrelet: 90 mm (3 17/32 inches).
Length over all (without fuze): 265.1 mm (10 7/16 inches).
Length of projectile body (without nose piece): 209.6 mm (8 1/4 inches).
Length protruding from case (without fuze): 246.1 mm (9 11/16 inches).
Width of Rotating Band: No data.
Fuzing:

Type 88 instantaneous nose fuze (howitzer-mortar type).

Type 88 short-delay nose fuze (howitzer-mortar type).

Weapons in which used: This is an antiquated weapon classified as a mortar by the Ja-panese by virtue of length of tube, muzzle velocity, etc., but bearing only a remote re-semblance to other Japanese mortars.

It is breech-loading, using an unterrupted thread breechblock, and employs projectiles embodying the conventional features of design of common breech-loading artillery pie-ces.

Remarks: The body of this projectile is painted black over-all. There is a shallow groove immediately below the bourrelet which may be painted yellow or green.

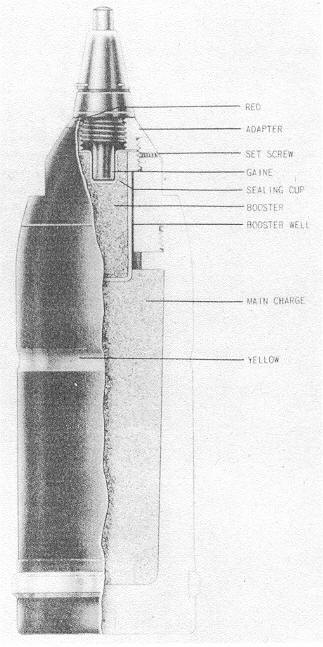

Figure 270 – 9-cm High-Explosive Projectile.
