Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition
Chapter 4 – Section 1
ARMY PROJECTILES
Type 100 Mod 2 - 20-mm I.T. (Self-Destroying) Projectile
Over-all length: 8 13/64 inches.
Length of projectile: 3 15/64 inches.
Filling: Incendiary composition, tracer composition.
Fuzing: Type 100 small instantaneous fuze.

Color and markings: Black body with red band just abaft bourrelet, green and yellow bands before rotating band. Characters

(type 100 Mod 2)
are stenciled on body.
Weapons in which used: Type 98 antiaircraft/antitank gun.

Remarks: This is the same projectile as the type 100 and type 100 Mod 1 H.E.T. but there is no high explosive other than that used in the gaine.

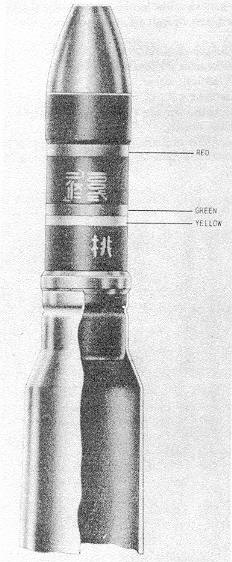

Figure 215 – Type 100 Mod 2 20-mm I.T. (Self-Destroying) Projectile.
