20-mm High-Explosive Incendiary Tracer Projectile
Over-all length: 7 11/16 inches.
Length of projectile: 4 23/32 inches.
Length of case: 4 7/8 inches.
Filling: Cyclonite, incendiary composition, tracer composition.
Fuzing: Type 100 small instantaneous fuze.

Color and markings: Black body with red band just abaft bourrelet, green and yellow bands before rotating band. Characters

(flexible or fixed machine cannon)

stenciled on body.

Weapons in which used: Ho-1 (flexible) and Ho-3 (fixed) aircraft cannon.

Remarks: The projectile is made of steel and has two cavities, a main charge cavity and a tracer cavity, separated by a septum. The main charge cavity contains two pellets, the forward one, fitting around the fuze gaine, is cyclonite while the after one is an in-cendiary mixture.

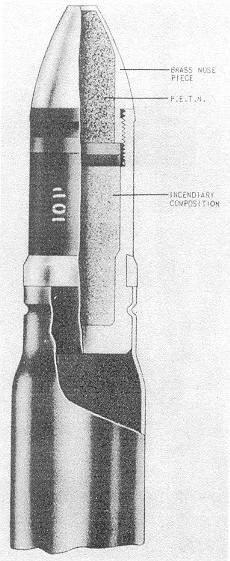

Figure 214 – 20-mm High-Explosive Incendiary Tracer Projectile.
