Chapter 4 – Section 1
ARMY PROJECTILES
30-cm (305-mm) Armor-Piercing High-Explosive Projectile
Weight of projectile: No data.
Weight of filling: No data.
Filling: No data.
Diameter at bourrelet: 305 mm (12 inches).
Length over all: 1,071 mm (42 11/64 inches).
Length protruding from case: 1,027 mm (40 7/16 inches).
Width of rotating band: 53 mm (2 1/16 inches).
Fuzing: Type 95 Large Mk 2 Model 2 base fuze.
Weapons in which used: Type 7-year 30-cm howitzer.

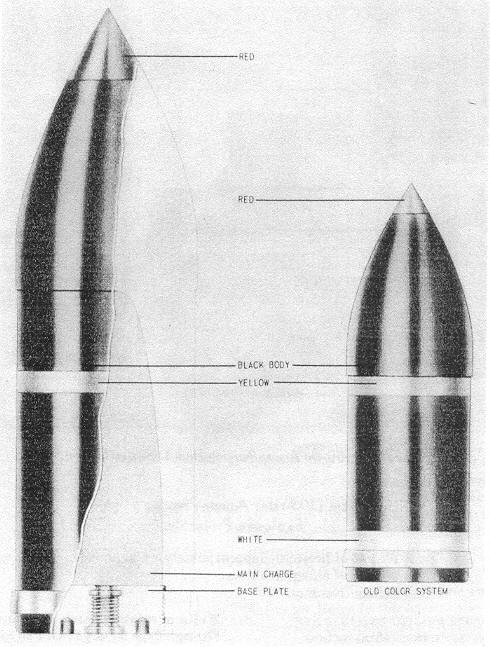

Figure 293 – 30-cm Armor-Piercing High-Explosive Projectile.
