Type 91 - 10-cm (105-mm) High-Explosive Long-Pointed Projectile
Weight of projectile, filled (without fuze): 15.7 kg. (34.5 pounds).
Weight of filling (white composition): 2.3 kg. (5.2 pounds).
Filling:

1. Cast TNT.

2. White composition of ammonium nitrate, cyclonite, and guanidine nitrate.

Diameter at copper bourrelet: 104.2 mm (4 1/8 inches).
Length over all (without fuze): 501.7 mm (19 3/4 inches).
Length protruding from case (without fuze): 423.9 (16 11/16 inches).
Width of rotating band: 22.2 mm (7/8 inch).
Width of copper bourrelet: 20.6 mm (13/16 inch).
Fuzing:

Type 88 instantaneous nose fuze.

Type 88 short delay nose fuze.

Weapons in which used:

Type 91 howitzer: Case, 9 1/2 inches.

Type 38 field gun: Case, 11 1/8 inches.

Type 14-year field gun: Case, 18 1/8 inches.

Type 92 field gun: Case, 29 inches.

Type 14-year A.A. gun (fixed ammunition): Case, 22 1/4 inches.

Remarks: This projectile has been recovered with either a copper or a machined bour-relet.

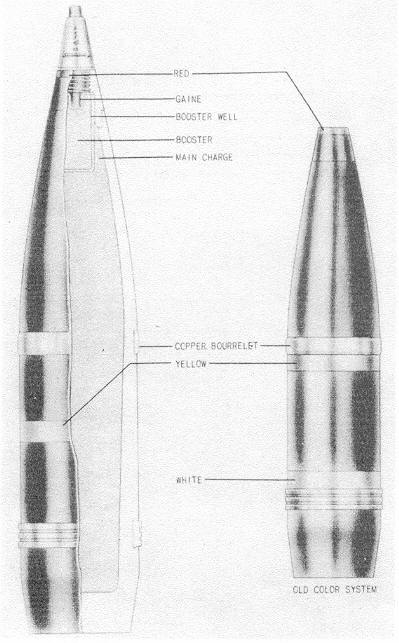

Figure 278 – Type 91 10-cm High-Explosive Long-Pointed Projectile.
