ARMY PROJECTILES |
Type 91 - 10-cm (105-mm) High-Explosive Projectile |
Weight of projectile, filled (without fuze): 15.9 kg. (35.06 pounds). |
Weight of filling: 2.3 kg. (5 pounds). |
Filling: Cast TNT. |
Diameter at bourrelet: 104 mm (4 3/32 inches). |
Length over all (without fuze): 427 mm (16 13/16 inches). |
Length protruding from case (without fuze): 389.7 mm (15 11/32 inches). |
Width the rotating band: 22.2 mm (7/8 inch). |
Fuzing: |
Weapons in which used: |
Type 91 howitzer: Case, 9 1/2 inches. |
Type 38 field gun: Case, 11 1/8 inches. |
Type 92 field gun: Case, 29 inches. |
Type 14-year field gun: Case, 18 1/8 inches. |

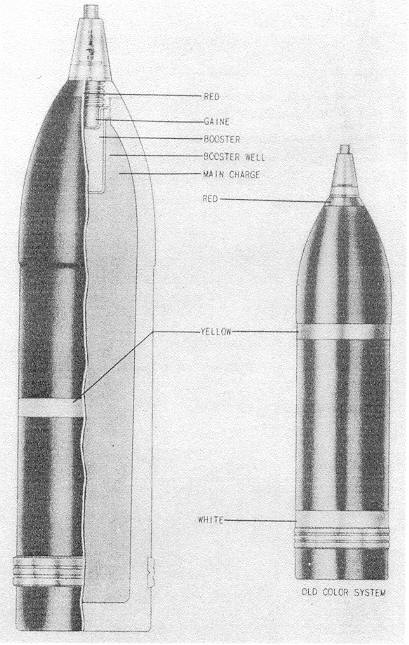

Figure 277 – Type 91 10-cm High-Explosive Projectile. |
|
![]() ![]() ![]() ![]() ![]() |
