Chapter 4 – Section 1
ARMY PROJECTILES
Type 100 - 8-cm (88-mm) High-Explosive A.A. Long-Pointed Projectile
Weight of complete round: No data.
Weight of complete projectile (with fuze): 19.6 pounds (approximate).
Weight of empty projectile (with auxiliary fuze): 7.4 kg. (16.3 pounds).
Weight of filling: 0.9 kg. (2 pounds).
Filling: TNT.
Diameter at bourrelet: 88 mm (minus tol.).
Length of projectile (without fuze): 298 mm (11 11/16 inches).
Length of propellant case: 570 mm (22 3/8 inches).
Length of assembled round (without fuze): 804 mm (31 9/16 inches).
Diameter of base of case: 100 mm (4 inches).
Width of rotating band:

Forward: 8 mm (5/16 inches).

Aft: 8 mm (5/16 inches).

Distance between rotating bands: 6 mm (1/4 inch).

Fuzing: Type 100 mechanical time fuze (combination time and impact) with an auxiliary detonating fuze. The auxiliary fuze is the same as that used in the 7-cm (75-mm) H.E.-A.A. projectile type 90.

Weapons in which used: Type 99 8-cm A.A. gun. This is a gun modeled after one of the German 88 mm guns.

Case:

Length: 567 mm (22 3/8 inches).

Diameter at base: 137 mm ( 4 3/8 inches).

The case is made of drawn brass and is machined for about 2 3/4 inches above the rim. It is a rimmed case with a slight taper and a bottleneck.

Propellant: No. 16 cylindrical, 2,330 grams (5.1 pounds).

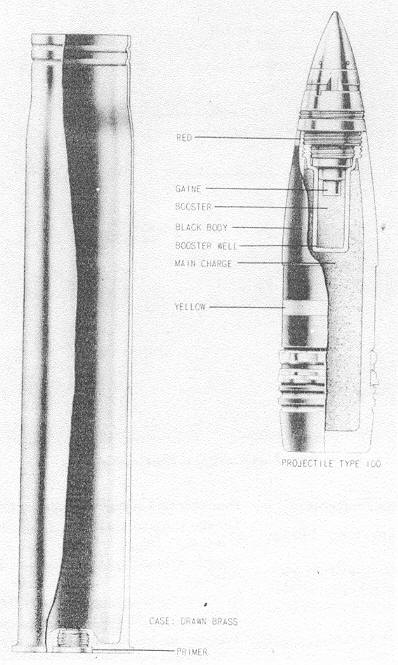

Figure 269 – Type 100 8-cm High-Explosive Antiaircraft Long-Pointed Projectile.
