Type 98 - 7-cm (75-mm) High-Explosive Projectile
Weight of projectile, filled: 4.5 kg (9.9 pounds).
Weight of filling: 0.95 kg. (2.1 pounds).
Filling: TNT cast directly into lacquered cavity.
Diameter at bourrelet: 75-mm (minus tol.).
Length over all (without fuze): 279 mm (11 inches).
Length of protruding from case: 240 mm (9 1/2 inches).
Width of rotating band: 10 mm.

Fuzing: Type 88 instantaneous nose fuze (gun type); type 88 short-delay nose fuze (gun type).

Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Remarks: The body of this projectile was designed for use as a shrapnel projectile em-ploying a large combination fuze. In the converted form, the projectile is filled with TNT instead of the shrapnel filling of lead balls, and a large ogival adapter permits the use of standard point-detonating fuzes and a standard H.E. booster.

Distinctive marking for this projectile is attained by painting the large adapter white.

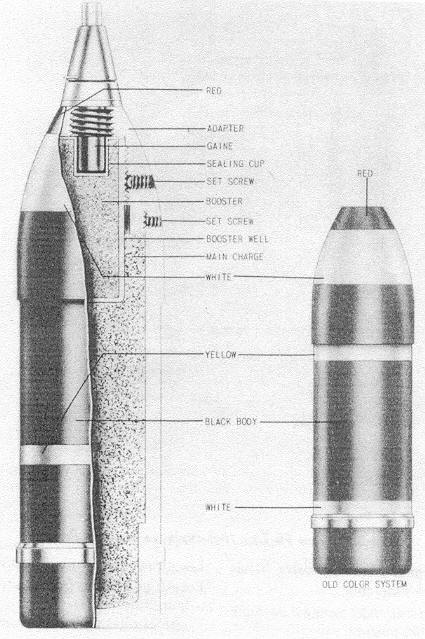

Figure 253 – Type 98 Modified 7-cm High-Explosive Projectile.
