Chapter 4 – Section 1
ARMY PROJECTILES
Type 90 - 7-cm (75-mm) High-Explosive Semisteel Projectile
Weight of projectile, filled: 6.18 kg. (13.7 pounds).
Weight of filling: 0.42 kg. (0.92 pound).
Filling: Cast TNT.
Diameter at bourrelet: 75 mm (minus tol.).
Length over all (without fuze): No data.
Length protruding form case (without fuze): 253 mm (9 15/16 inches).
Width of rotating band: 10 mm.

Fuzing: Type 88 instantaneous nose fuze (gun type); type 88 short-delay nose fuze (gun type).

Weapons in which used:

Type 41 mountain gun (regimental gun): Case, 7 1/4 inches.

Type 94 mountain gun: Case, 11 5/16 inches.

Type 38 field gun group: Case, 11 9/16 inches.

Type 90 field gun: Case, 16 11/16 inches.

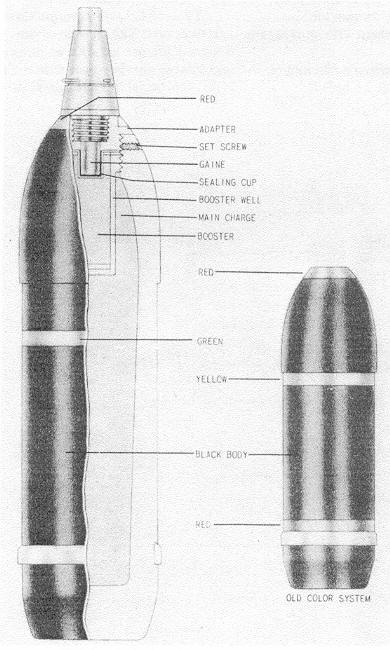

Figure 254 – Type 90 7-cm High-Explosive Semisteel Projectile.
