| Weight of complete round: 4.42 kg. (9.72 pounds). |
| Weight of projectile fuzed: 3.81 kg. (8.38 pounds). |
| Weight of filling: 0.590 kg. |
|
Filling: Standard, cast TNT; alternate, pressed mixture of R.D.X. and
ammonium nitrate. |
| Diameter of bourrelet: 70 mm (minus tol.). |
| Length of projectile (without fuze): 234 mm (9 1/4 inches). |
| Length of propellant case: 101 mm (4 inches). |
| Length of assembled round (without fuze): 306 mm (12 1/16 inches). |
| Diameter of base of case: 81 mm (3 3/16 inches). |
| Width of rotating band: 10 mm. |
| Weapons in which used: Type 94 tank gun. |
| Fuzing: Type 88 short-delay nose fuze (gun type). |
| Propellant: 138 grams of 5-mm square grain (medium) smokeless powder. |
|
Remarks: The projectile is the same as the type 92 H.E.
projectile used in the Type 92 Infantry Howitzer.
|
|

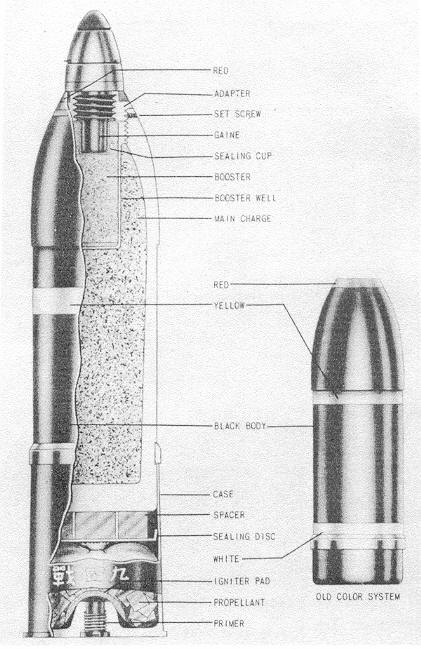

Figure 240 – Type 92 7-cm High-Explosive
Projectile. |
