| Japanese Navy Bombs |
| No. 80 Ordinary Bomb Model 1 |
|
Over-all length: 111 1/2 inches. |
|
Length of body: 62 inches. |
|
Diameter of body: 17 1/2 inches. |
|
Thickness of wall: 3/4 inch. |
|
Material of wall: Steel. |
|
Type of suspension: Horizontal. |
|
Suspension lug: Two guide studs on the bomb body position a carrying band to which a suspension lug is attached. |
|
Color and markings: Gray over all. Green nose and tail struts. Two red lines 180° removed along the longitudinal axis of the bomb. New type markings will be found. |
|
Length of tail: 49 inches. |
|
Width of tail: 24 1/2 inches. |
|
Width of tail fins: 10 1/2 inches. |
|
Dimensions of tail struts: Length, 3 9/16 inches; width, 17 3/4 inches; thickness, 5/32 inch. |
|
Material of tail: Steel. |
|
Type of filling: Type 91 explosive (cone is filled). |
|
Weight of filling: 770 pounds (approximate). |
|
Total weight of bomb: 1,820 pounds. |
|
Charge/weight ratio: 41.7 percent. |
|
Construction of body: The bomb body is constructed of 1 piece of machined forged steel. A fuze pocket is drilled in the nose. A tail cone is screwed onto an adapter ring which fits into the after end of the body and is held there by 30 flat-headed screws. |
|
Construction of tail: Four 1/8-inch steel fins are welded to the tail cone and are braced by a single set of box-type struts. |
|

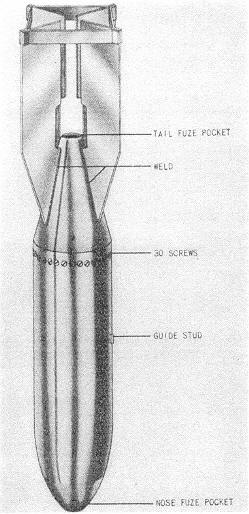

Figure 42 - No. 80 Ordinary Bomb Model 1. |
|
|
 |
