| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 1 – Section 2 |
| Japanese Navy Bombs |
| Type 99 No. 6 Land Bomb |
|
Overall length: 42 1/4 inches. |
|
Length of body: 25 1/2 inches. |
|
Diameter of body: 8 7/8 inches. |
|
Thickness of wall: 1/4 inch. |
|
Material of wall: Steel. |
|
Type of suspension: Horizontal. |
|
Suspension lug: Normal Navy suspension lug. |
|
Color and markings: Gray over all with a green nose band and green tail struts. There are two thin red lines 180° apart along the length of the bomb. New type color markings will be found. |
|
Length of tail: 16 7/8 inches. |
|
Width of tail: 12 1/4 inches. |
|
Width of tail fins: 5 5/8 inches. |
|
Dimensions of tail struts: Length, 9 inches; width, 1 inch; thickness, 1/16 inch. |
|
Material of tail: Steel. |
|
Type of filling: Picric acid of type 98 explosive. |
|
Weight of filling: 70 pounds. |
|
Total weight of bomb: 138 pounds. |
|
Charge/weight ratio: 50 percent. |
|
Construction of body: The body is constructed of 1 piece of machined forged steel. It is threaded in the nose to receive a fuze. The after end of the body is threaded inter-nally to accommodate a male base plate. A tail cone is secured to the base plate by a single row of 20 screws. There is no explosive in the tail cone. |
|
Construction of tail: Four fins are welded to the tail cone and braced by a single set of box-type struts. |
|

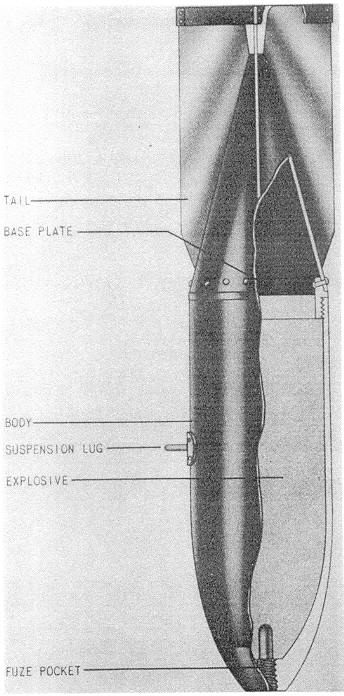

Figure 39 - Type 99 No. 6 Ordinary Bomb. |
|
|
 |
