| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| ANTICONCRETE PROJECTILE, TYPE 18, 210-MM |
| GERMAN NOMENCLATURE: 21-cm Gr. 18 Be. (Granate 18 Beton). (See. fig. 532.) |
| EMPLOYMENT: 21-cm Mrs. 18 (Mörser 18), Mortar 18. |
|
lg. 21-cm Mrs. 18 (langer 21-cm Mörser 18), Long Mortar 18. |
| PROJECTILE, painted green: |
|
36.534 inches, over-all length. |
|
4.606 inches, distance from base to band. |
|
0.590 inch, width of rotating bands. |
|
Two, number of rotating bands. |
|
7.480 inches, diameter of base. |
|
268.0 pounds, total weight. |
|
25.6 pounds, weight of bursting charge. |
|
TNT, type of bursting charge. |
|
Zdlg. C/98 booster (picric acid). |
| CARTRIDGE CASE (German nomenclature 6351 [semi-fixed]): |
|
16.125 inches, over-all length. |
|
8.75 inches, diameter of neck. |
|
No shoulder. |
|
9.50 inches, diameter of base. |
|
31.0 pounds, weight of propellant. |
|
Diglycol, type of propellant. |
|
C/12 n.A. primer. |
| FUZE: Base Detonating Fuze Bd.Z. f. 21-cm. |
| PACKAGING: One to a wicker basket. |
| REMARKS: Projectile has streamlined base, ballistic cap. |
|

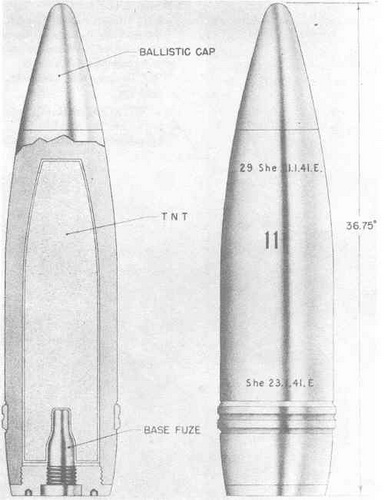

Figure 532 – Anticoncrete Projectile, Type 18, 210-mm, 21-cm Gr. 18 Be. |
|
|
 |
