| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE, TYPE L/4.7 WITH NOSE FUZE AND BALLISTIC CAP, 203-MM |
|
GERMAN NOMENCLATURE: 20.3-cm Sprgr. L/4.7 Kz. (m. Haube) (Sprenggranate Kopf-zünder [mit Haube]). (See fig. 531.) |
| EMPLOYMENT: 20-cm K. (E) (Kanone [Eisenbahn]), Gun (Railway). |
| PROJECTILE: |
|
37.519 inches, over-all length. |
|
Three, number of rotating bands. |
|
26.84 pounds, weight of bursting charge. |
|
TNT in cardboard container, type of bursting charge. |
|
Ballistic cap. |
|
Unstreamlined base. |
| CARTRIDGE CASE (German nomenclature C/34): |
|
61.6 pounds, weight. of propellant. |
|
PRC/32, type of propellant. |
|
C/12 n.A. |
| FUZE: Nose Percussion Fuze Kz. C/27 Lm, St. or Ms. |
| PACKAGING: One projectile in wicker basket. |
|
286 pounds. |
| REMARKS: |
|
There is also a round designated: "20.3-cm Aprgr. L/4.7 m Bd.Z. m. Haube", which is identical except that this type is also fitted with base fuze Bd.Z. C/38. |
|

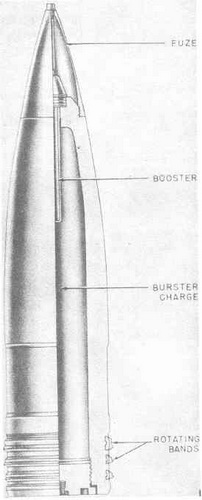

Figure 531 – H.E. Projectile, 203-mm, |
|
|
 |
