| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR FOR 122-MM GUN |
| GERMAN NOMENCLATURE: 12.2-cm Sprgr. FEW (r). (See fig. 479.) |
| WEAPONS: | 12.2 Cm | Model |
|
Russian Gun: |
K 390/1 (r) | 31 |
|
Russian Gun: |
K 390/2 (r) | 31/37 |
| PROJECTILE: |
|
Caliber: 122 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 49.75 pounds (loaded and fuzed). |
|
Color: O.D. |
| CHARGE: |
|
Number: 13A. |
|
Weight: 7.75 pounds. |
|
Kind: Amatol 50/50. |
| TRACER: None |
| BOOSTER: wlf Np 10 |
| FUZE: |
|
Nomenclature: A.Z. 23 (0.15) Dopp.Z. S/60 T. & P. |
|
Type: P.D. |
| REMARKS: |
|
Note 1. – This projectile is of German manufacture for the Russian weapons listed above. |
|
Note 2. – FEW on the body of the projectile indicates the presence of a bimetallic rotat-ing band. |
|

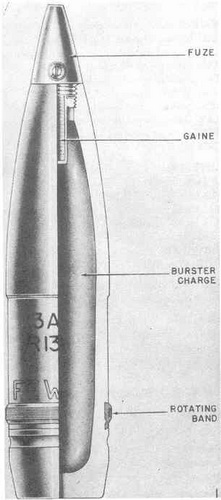

Figure 479 – H.E. Projectile, 122-mm, 12.2-cm Sprgr. (FEW) (r) |
|
|
 |
