| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. 12.8-CM PROJECTILE |
| GERMAN NOMENCLATURE: 12.8-cm Sprgr.Patr. L/4.5 (Sprenggranatpatrone L/4.5). (See fig. 480.) |
| WEAPONS: |
|
German A.A. Gun 12.8-cm Flak 40 |
| COMPLETE ROUND: |
|
58.5 inches, over-all length. |
|
100.25 pounds, total weight. |
| PROJECTILE (Painted yellow, stenciled in black): |
|
Filling: Amatol 40/60 cast (7 pounds, 7½ ounces). |
|
57 pounds, 5 ounces, weight of projectile filled and fuzed. |
| PROJECTILE CASE: |
|
Material – brass. |
|
Over-all length – 37.75 inches. |
|
Propellant charge – 9.62 kg. |
|
Dig.R.P. – Kn. (850 x 5,6/2). |
|
Igniter – 239 grams nitrocellulose composition. |
|
Primer – A C/22 electric. |
| FUZE: Zt.Z. S/30. |
|

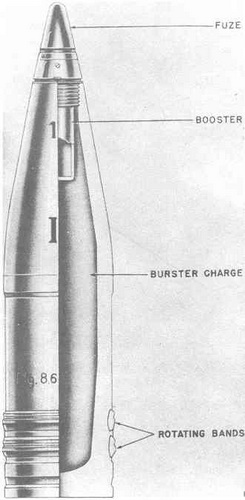

Figure 480 – H.E. Projectile, 128-mm, 12.8-cm Sprgr.Patr. L/4.5 |
|
|
 |
