| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 105-MM GUN |
| GERMAN NOMENCLATURE: F.H.Gr. 38 FES. (See fig. 461.) |
| WEAPONS: |
|
German Light Field Howitzer le.F.H. 18 |
|
le.F.H. 18/1 |
|
le.F.H. 18/2 |
|
le.F.H. 18 m.M. (muzzle break) |
|
le.F.H. 18/39 |
|
le.F.H. 18/40 |
| PROJECTILE: |
|
Caliber: 105 mm |
|
Kind: Shell |
|
Type: H.E. |
|
Weight: 33.08 pounds (loaded and fuzed) |
|
Color: O.D. |
| CHARGE: |
|
Number: 13 |
|
Weight: 3 pounds |
|
Kind: Amatol 50/50 |
| TRACER: |
| BOOSTER: Grid Np 10 |
| FUZE: |
|
Nomenclature: A.Z. 23 (0.15) or (0.25); Dopp.Z. S/60 F. II. |
|
Type: P.D. |
|

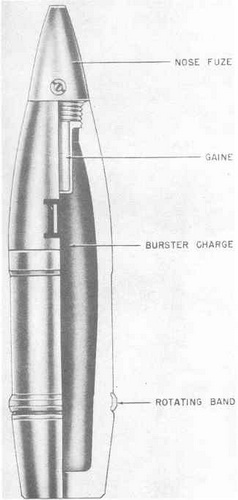

Figure 461 – H.E. Projectile, 105-mm, 10.5-cm F.H. Gr. 38 FES |
|
|
 |
