| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 105-MM GUN |
| GERMAN NOMENCLATURE: 10.5 cm Gr. 346 (f) (See fig. 462) |
| WEAPONS: |
|
French Gun: 10.5-cm K 331 (f), Model L Mle 1913S |
|
Polish Gun: 10.5-cm K 13 (p), Model 13 |
|
Belgian Gun: 10.5-cm K 333 (b), Model L 13 |
|
Yugoslav Gun: 10.5 cm K 338 (j), Model S. |
| PROJECTILE: |
|
Caliber: 105 mm |
|
Kind: Shell |
|
Type: H.E. |
|
Weight: 35.5 pounds (loaded and fuzed) |
|
Color: Body, brick red, oliv-yellow |
| CHARGE: |
|
Number: S |
|
Weight: 7 pounds |
|
Kind: Tolite |
| TRACER: None |
| BOOSTER: Integral with fuze |
| FUZE: |
|
Nomenclature |
| German | French |
|
(1) |
A.Z. 235 (f) |
(1) |
24/31 99 |
|
(2) |
A.Z. 237 (f) |
(2) |
24/31 99-08 |
|
(3) |
A.Z. 251 (f) o.V. |
(3) |
24/31 RYG 18 |
|
(4) |
A.Z. 253 (f) kz.V. |
(4) |
24/31 RYG 18 CR |
|
(5) |
A.Z. 257 (f) kz.V. |
(5) |
24/31 RY 17 CR |
|
(6) |
A.Z. 261 (f) |
(6) |
24/31 JAL 16 |
|
(7) |
A.Z. 277 (f) kz.V. |
(7) |
24/31 JAL 16 |
|
(8) |
A.Z. 281 (f) o.V. |
(8) |
24/31 TCAL 26 J |
|
(9) |
Dopp.Z. 445 (f) |
(9) |
24/31 LD 17 |
|
(10) |
Zt.Z. 417 (f) |
(10) |
24/31 LD 18 |
|
Type (1) P.D. (2) P.D. (3) P.D. (4) P.D. (5) P.D. (6) P.D. (7) P.D. (8) P.D. (9) T. and P. (10) T. |
|

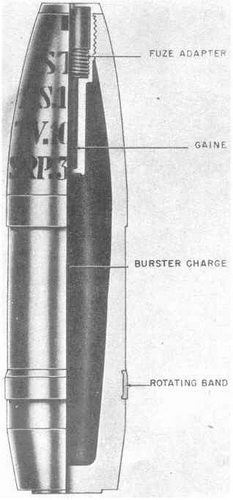

Figure 462 – H.E. Projectile for French 105-mm Howitzer, 10.5-cm Gr. 346 (f) |
|
|
 |
