DESCRIPTION. This grenade is painted field grey and is fitted with magnets which are sufficiently powerful to cause it to adhere to a vertical surface. The main filling is con-taining in a pressed metal container which is conical in shape with an elongated apex serving the dual purpose of forming a handgrip and accommodating the exploder pellet of PETN/Wax. This latter is housed in a metal tube protruding from the underside of the screwthreaded closing cap. The metal tube is screwthreaded internally to receive the igniter. (See fig. 288.)

Attached to the base of the conical portion by means of six bolts protruding through the container is a plywood framework carrying three horseshoe type magnets. During transit these magnets are fitted with a keeper which must, of course, be removed before using the charge. A brass chain terminating in a hook is attached to the frame.

This charge is reported to penetrate as much as 110 mm. of armor. The penetration is acquired through the use of the shaped charge formed around the 60° angle cone.

There are two igniters used in this grenade: one having a delay of 4 1/2 seconds and the other having a delay of 7 seconds. The first igniter has a blue cap and the second has a yellow cap.

OPERATION. The friction igniter is pulled and this will ignite the delay element. When the grenade strikes a tank the magnets cause it to cling to the side and at the end of the delay time the igniter will detonate the exploder pellet and main filling.

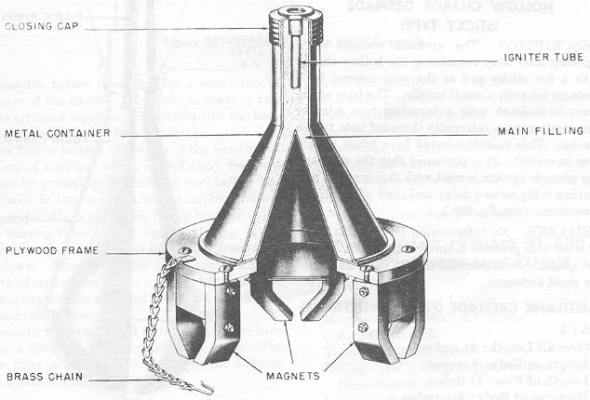

Figure 288 – Magnetic Antitank Hand Grenade
