DESCRIPTION. The grenade consists of a tapering steel body containing the hollow charge with a flat sticky pad at the nose covered by a press-on lid with a small handle. The base of the grenade is fitted with a tapering fuze adapter terminating in an internally threaded hole for an igniter. This hole is covered by a black plastic plug in transit. It is pressumed that the standard egg grenade igniter is used with this grenade employing a 4 1/2-second delay and used with a No. 8 detonator. (See fig. 289.)

REMARKS. No information is available as to whether this grenade is thrown or placed against the target. It is possible that it may be lobbed for short distances.

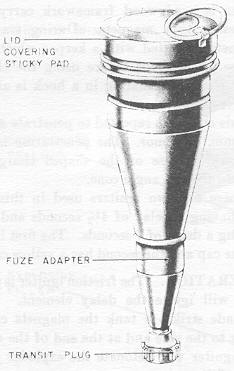

Figure 289 – Hollow Charge Sticky Hand Grenade
