GERMAN EXPLOSIVE ORDNANCE - BOMBS, BOMB FUZES, ROCKET, LAND MINES, GRENADES AND IGNITER |
Chapter 1 |
GERMAN BOMBS |
PC 500 RS |
DATA: |
Over-all Length: 81 3/4 in. |
Body Length: 33 in. |
Body Diameter: 11 1/4 in. |
Filling: Very pure cast TNT in an aluminum container in the nose. Rest of filling is alterna-te layers of good and poor quality TNT. |
Weight of Filling: 14 kg. |
Total Weigth: 490 kg. |
Chg/Wt Ratio: 3%. |
Fuzing: Charging head – (49) A1, (49) B1, (49) B1 Ex.; Pyrotechnic – (49) A11, (49) B11; Impact – (49) A, (49) A111, (49) B111. |
CONSTRUCTION. The rocket container is attached to the base of the bomb by a cylin-drical steel distance piece which is threaded internally on both ends – one end threading over the bomb base and the rocket container threading into the other end. (See fig. 33.) |
In the side of the distance piece is filled an electric fuze head marked (49) B1 with char-ging plungers connecting to (49) B11 and (49) B111 fuzes. Fuze (49) B11, a pyrotechnic fuze with a delay of 3 seconds is used for igniting the rockets. Fuze (49) B111 is an electrical impact fuze fitted into the base plate of the bomb, giving a fractional delay action to the bomb after striking the target. |
Nineteen rockets are placed in the rocket container. Twelve are 25 5/8 inches long by 2 1/16 inches diameter and seven are 27 5/8 inches long by 2 1/16 inches diameter. Weight of rocket section is 146 kg. |
The tail is 2 feet 4 inches (large diameter): 1 foot 10 inches (small diameter). |
SUSPENSION. Horizontal. |
COLOR AND MARKINGS: NL 6 40. |
PC 500 RS is stenciled in black on the side of the bomb. |

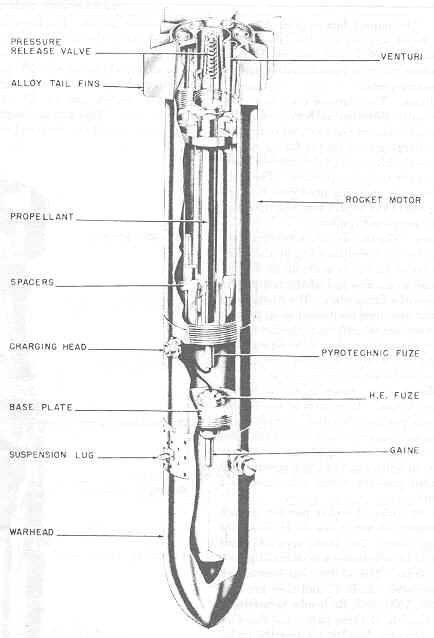

Figure 33 – PC 500 RS Bomb |
|
