LAND MINES |
Section III |
ANTITANK MINES AND FUZES |
12. PRACTICE ANTITANK MINES. |
a. MINE, Antitank, Practice, M1. |
(1) GENERAL. This mine with principal data and markings is shown as a complete round assembly in figure 7. The complete round consists of three components, an empty body, the spider, and a fuze. |
(2) BODY AND SPIDER. These parts are similar in construction to the corresponding parts of the high-explosive mine except that the body has five 1-inch holes equally spa-ced around the side. |
(3) FUZES. Fuzes are described in paragraph 14. |
(4) ASSEMBLY (FUZING AND ARMING). The practice mine is assembled in the same manner as the service mine, described in paragraph 11 c. |
(5) DISASSEMBLY (DISARMING AND UNFUZING). See paragraph 11 d. |
(6) PACKING AND MARKING. Practice mines are packed in a box similar to that of the high-explosive mine, except that the fuze compartment is empty. Practice fuzes are is-sued in a separate packing. Practice mines are painted blue and marked in white. |
|

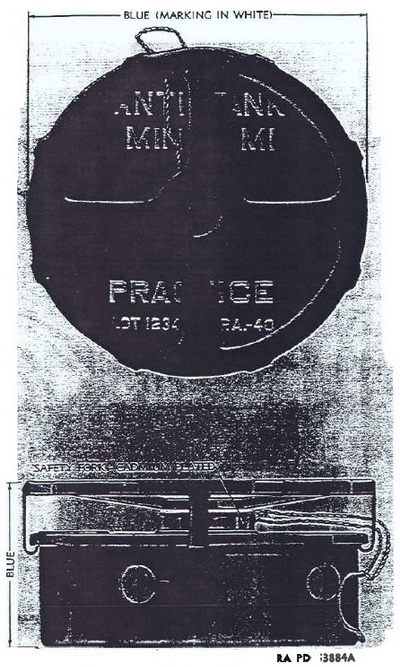

Figure 7 - MINE, Antitank, Practice, M1 |
b. MINE, Antitank, Practice, M1B1. This model is made of sheet metal and resembles the service mine except that the filling hole is in the bottom of the mine body. The mine is sand-filled to weight before it is issued for use in practice. |
|

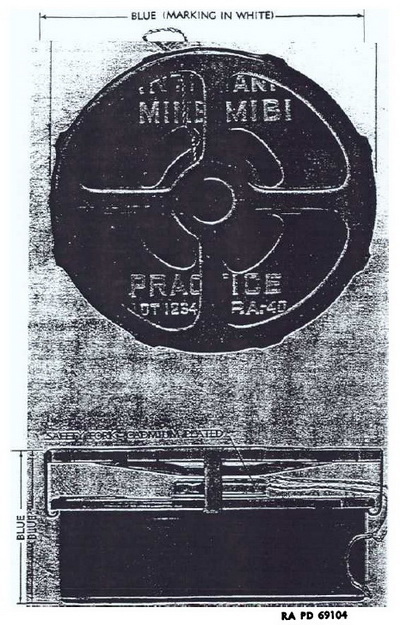

Figure 8 - MINE, Antitank, Practice, M1B1 |
