| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 13 - MISCELLANEOUS MINES |
| K TR Mi MINES OF THE WEHRMACHT |
| K TR Mi 38 |
|
Description of Case |
|
Shape |
Cylindrical, with antenna protruding from top center of case |
|
Material |
Wood |
|
Diameter |
17-3/4 in. |
|
Length |
6-1/4 in. |
|
Charge |
44-lb. TNT with Tetryl booster |
|
Total weight in air |
66 lb. |
|
Description of External Fittings |
|
Antenna |
4-1/2 ft, long, bamboo or hazlewood fitted to top of metal firing stem on top center of case |
|
Firing mechanism cover plate |
Threaded into well on top center of charge container |
|
Wood float |
Secured to firing stem, fitted with six wooden contact arms, each 13 in. long. |
|
Lifting handles |
Two, 180° apart, on top edge of case |
|
Operation. This mine is armed by a ten-minute arming clock in the firing mechanism. |
|
The mines are fired by percussion upon impact. The arming clock is fitted with a self-destroying feature which will explode the charge after a maximum delay period of six hours. |
|

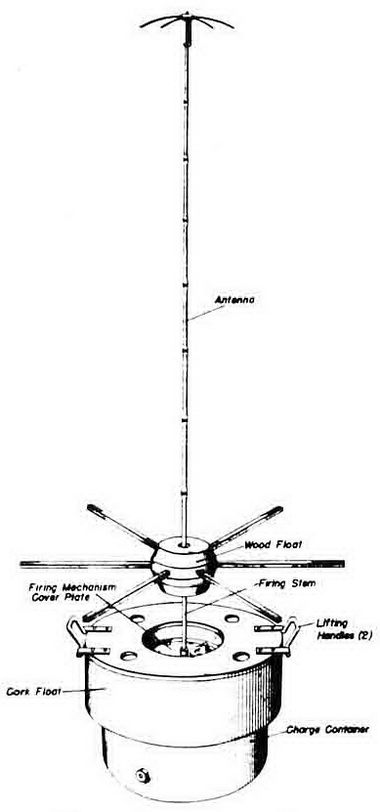

Figure 311 – K TR Mi 38 Mine |
|
|
 |
